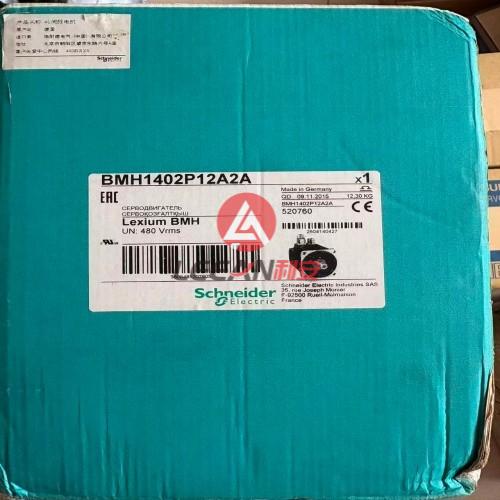

Schneider Electric Series AC Servo Motor BMH1402P12A2A Industrial 480V 4.44W NEW

Schneider Electric Series AC Servo Motor BMH1402P12A2A Industrial  480V 4.44W NEW

---

Overview

This product is part of the Lexium 32 range, an offer of servo motors from 0.15kW to 11kW. The 10-pole servo motor features maximum mechanical speed of 4000RPM and keyed shaft end without holding brake. It is an equipped with a multi-turn SinCos Hiperface® feedback with 1,31,072 points/turn x 4096 turns speed feedback resolution. It is a servo motor with a rated supply voltage of 480V, a continuous stall current of 16.83A and a continuous power of 4.44W. The shaft dimensions are 24mm (diameter) x 50mm (length). It is furnished with rotatable right angled connectors for electrical connection. It is an IP54 rated product. The length of this product is 192mm and the centering collar dimensions are 3.5mm (depth) x 130mm (diameter) with 165mm mounting hole. It weighs 12kg. This range is compatible with Lexium 32 servo drives. This product is compatible with LXM32.D72N4 at 400V to 480V three phase. It supports 140mm international standard flange mount with a natural convection cooling system. Lexium 32 is a servo drive range provides drive and motor combination that has exactly the right power, performance and functionality. The Lexium 32 range of servo drives includes four servo drive models with power ratings from 0.15kW to 11kW and the servo motor ranges BMH and BSH series.

---

Details

Schneider Electric Servo motor

BMH1402P11A2A BMH1402P11F2A BMH1402P12A2A BMH1402P12F2A BMH1402P16A1A BMH1402P16A2A BMH1402P16F2A BMH1402P21A2A BMH1402P12A2A BMH1402P01A2A BMH1402P12F2A BCH1804M12F1C BCH16HD02330A5C BCH16HD02330A5C2 BCH16HD02330F5C2 BCH16HD02332A5C2 BCH16HD02332F5C2 BCH16HD04330A5C2 BCH16AD04330F5C2 BCH16HD04332A5C2 BCH16HD04332F5C2 BCH0602O12F1C BCH0802O12F1C BCH1302N12F1C BCH1303N12F1C BCH1802N12F1C BMH1003P12F2A BMH0702P12A2A BSH1002P11A2A BCH2MBA533CA5C BCH1303N12F1C BCH1303N02F1C BCH1303N22F1C LXM23CU20M3X BCH1304N12F1C LXM23CU20M3X We have good prices on any series of Schneider Electric  Servo motors, controllers, circuit breakers, contactors, frequency converters, relays, etc. pls feel free to contact us.

Schneider Electric  Motor circuit breaker

GV2PM01C GV2PM02C GV2PM03C GV2PM04C GV2PM05C GV2PM06C GV2PM07C GV2PM08C GV2PM10C GV2PM14C GV2PM16C GV2PM20C GV2PM21C GV2PM22C GV2PM32C GV2ME01C  GV2ME02C  GV2ME03C  GV2ME04C GV2ME05C GV2ME06C GV2ME07C GV2ME08C GV2ME10C GV2ME14C GV2ME16C GV2ME20C GV2ME21C GV2ME22C GV2ME32C

---

---

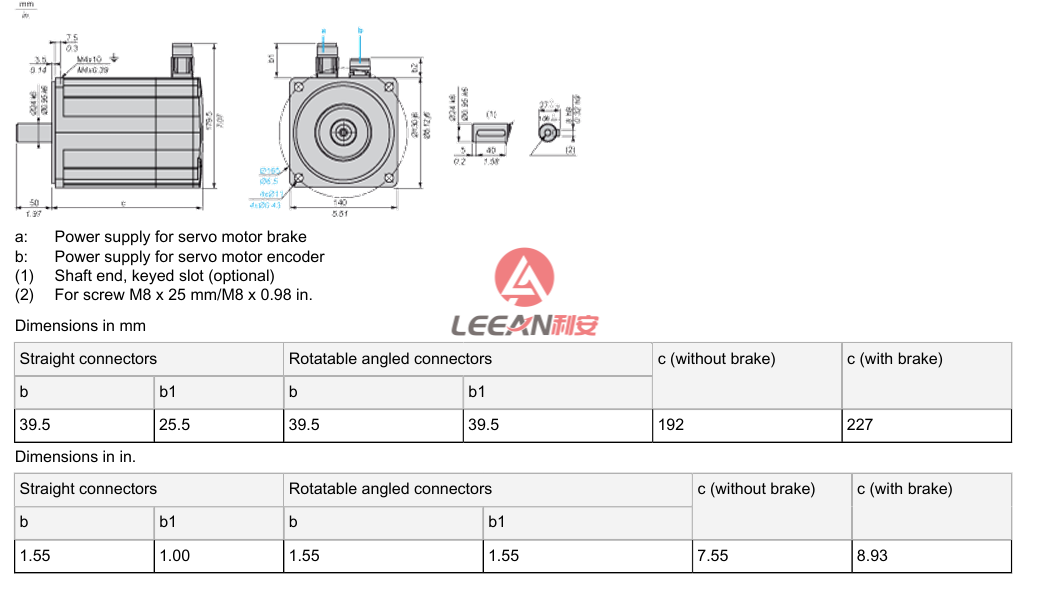

Servo Motors Dimensions

---

About Package

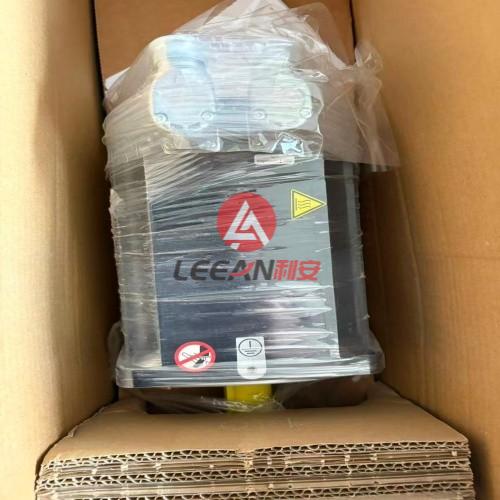

We will pack the items car

efully under 30KG in carton box and 30KG+ in wooden box.

---

About Shipment

We will ship the items out by FEDEX ,DHL,UPS and so on, the delivery time is about 5-6 working days.

---

About Payment

1.100% T/T in advance for the items with 3-5 days lead time.

2.50% T/T advance and balance before delivery for the items with 2-3 weeks lead time.

3.We can accept T/T; Wechat and Alipay payment terms.

---
