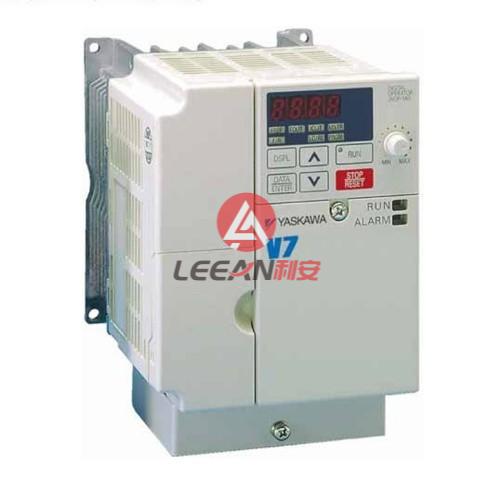

Yaskawa Electric Varispeed V7 Frequency Inverter CIMR-V7AT40P4 Industrial AC Drive 380-460V New

Product Item : CIMR-V7AT40P4
Category： OYMC Omron Yaskawa Inverter
Condition:New Original
Warranty:One Year
Country of Origin:Japan
Stock:50PCS
INQUIRY EMAIL

Yaskawa Electric Varispeed V7 Frequency Inverter CIMR-V7AT40P4 Industrial AC Drive 380-460V New

Overview

The V7 was a low cost, high performance compact drive, operable in V/f or Open Loop Vector mode. In addition to good speed regulation, open loop vector control also provided higher torque at lower speeds. The V7 was ideally suited for applications such as conveyors, grinders, centrifuges, pumps, fans,blowers, machine tools, packaging, food processing, and commercial laundry.

The V7 / Configured package provided a V7 in a NEMA 1 or NEMA type12 enclosure, with space for several commonly used options, such as reactors, input filters, circuit breakers, etc.

The V7 Drive is a Legacy product and is no longer promoted in the Americas. Earlier versions of this product were named GPD 315/V7, GPD 315 or VS Mini V7.

Sensorless vector in pocket size
• Nominal torque at 0.5 Hz
• Autotuning
• High carrier up to 14 khz
• Stop accuracy function.
• Integrated PID controller and bidirectional PID-out put
• Motor protection with PTC input
• Pulse input
• Standard digital operator with copy function
• Fieldbus: Modbus, DeviceNet, PROFIBUS, CANopen
• High speed motion bus: ML- II
• Plug-in PLC option unit. Total inverter access.
• CE, UL, and cUL marked
V7 IP65
• Compact size
• Easy wiring
• Built-in filter (Class B)
Customized software
• The inverter software can be customized to meet specific application. Examples:
• Traverse sofware S-9381.
For detailed information please refer to case software section.

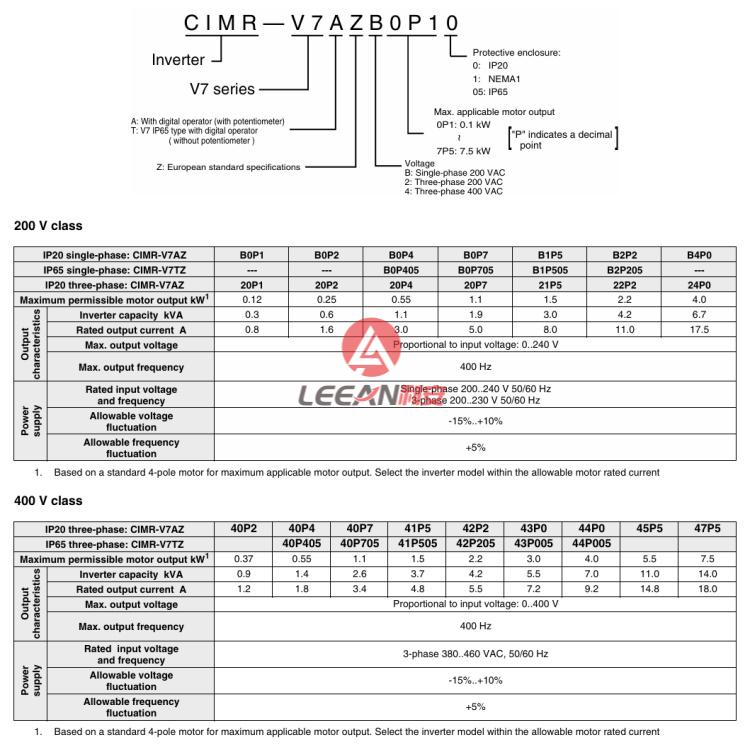

Ratings
• 200 V Class single-phase 0.1 to 4 kW
• 200 V Class three-phase 0.1 to 7.5 kW
• 400 V Class three-phase 0.2 to 7.5 kW

Details

Manufacture	Yaskawa from Japan
Product Type	AC Drive Inverter
Model no.	CIMR-V7AT40P4

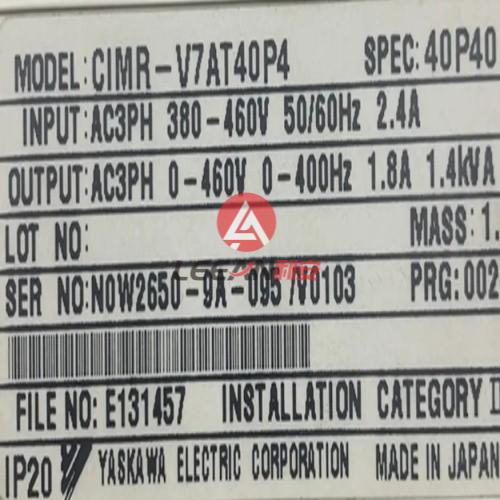

Specifications	Input:AC3PH 380-460V 50/60Hz 2.4A Output:AC3PH 0-460V 0-400Hz 1.8A 1.4kVA
Condition	New
Net Weight	1.3KG
Warranty	One Year
V7 Series AC Drive Inverter	CIMR-V7AT40P4 CIMR-V7AT40P7 CIMR-V7AT41P5 CIMR-V7AT42P2 CIMR-V7AT43P7 CIMR-V7AT45P5 CIMR-V7AT47P5 CIMR-V7AZ40P4 CIMR-V7AZ40P7 CIMR-V7AZ41P5 CIMR-V7AZ42P2 CIMR-V7AZ43P7 CIMR-V7AZ45P5 CIMR-V7AZ47P5 CIMR-V7AZB0P7 CIMR-V7AZB1P5 CIMR-V7AZB2P2 CIMR-V7RA40P7 CIMR-V7AZB7P5 CIMR-F7A4022 CIMR-F7B4075 CIMR-F7B4090 CIMR-V7AA20P2 CIMR-V7CJ45P5 CIMR-V7AM42P2 CIMR-V7CA23P7 CIMR-V7ATB3P7 CIMR-V7AZ43P0 CIMR-V7AZ42P2 CIMR-V7AT23P7 CIMR-V7NA20P2 CIMR-V7CCB0P1 CIMR-V7NA20P2 CIMR-V7CJ40P7 CIMR-V7BC24P0 CIMR-V7RA40P4 CIMR-V7AM23P7 CIMR-V7AM20P4 CIMR-V7SC24P0 CIMR-V7AA27P5 CIMR-V7AAB0P1 CIMR-V7CA21P5 We have good prices on any series of Yaskawa Inverter,Servomotor and Servo Drive and Encoder, if you have any need on them, pls feel free to contact us.
J7 Series AC Drive Inverter	CIMR-J7AA40P4 CIMR-J7AA40P7 CIMR-J7AA41P5 CIMR-J7AA42P2 CIMR-J7AA43P7 CIMR-J7AA20P7 CIMR-J7AA21P5 CIMR-J7AA22P2 CIMR-J7AA20P2 CIMR-J7AA20P4 CIMR-J7AA23P7 CIMR-J7AA20P1 CIMR-J7AZ20P1 CIMR-J7AZ20P2 CIMR-J7AZ20P4 CIMR-J7AZ20P7 CIMR-J7AZ21P5 CIMR-J7AZ22P2 CIMR-J7AZ23P7 CIMR-J7AZ40P2 CIMR-J7AZ40P4 CIMR-J7AZ40P7 CIMR-J7AZ41P5 CIMR-J7AZ42P2 CIMR-J7AZ43P7 CIMR-J7AZ43P0 CIMR-J7AZB0P4 CIMR-J7AZB0P7 CIMR-J7ACB0P4 CIMR-J7ACB0P2 CIMR-J7AM20P7 CIMR-J7AM20P1 CIMR-J7AM20P2 CIMR-J7AM43P7 CIMR-J7AM43P1 CIMR-J7AM20P4 CIMR-J7AM20P7 CIMR-J7AM22P2 CIMR-J7AM23P7 CIMR-J7AM21P5 We have good prices on any series of Yaskawa Inverter,Servomotor and Servo Drive and Encoder, if you have any need on them, pls feel free to contact us.
F7 Series AC Drive Inverter	CIMR-F7U20P4 CIMR-F7U20P7 CIMR-F7U21P5 CIMR-F7U22P2 CIMR-F7U23P7 CIMR-F7U25P5 CIMR-F7U27P5 CIMR-F7U2011 CIMR-F7U2015 CIMR-F7U2018 CIMR-F7U2022 CIMR-F7U2030 CIMR-F7U2037 CIMR-F7U2045 CIMR-F7U2055 CIMR-F7U2075 CIMR-F7U2090 CIMR-F7U2110 CIMR-F7U40P4 CIMR-F7U40P7 CIMR-F7U41P5 CIMR-F7U42P2 CIMR-F7U43P7 CIMR-F7U44P0 CIMR-F7U45P5 CIMR-F7U47P5 CIMR-F7U4011 CIMR-F7U4015 CIMR-F7U4018 CIMR-F7U4022 CIMR-F7U4030 CIMR-F7U4037 CIMR-F7U4045 CIMR-F7U4055 CIMR-F7U4075 CIMR-F7U4090 CIMR-F7U4110 CIMR-F7U4132 CIMR-F7U4160 CIMR-F7U4185 CIMR-F7U4220 CIMR-F7U4300 We have good prices on any series of Yaskawa Inverter,Servomotor and Servo Drive and Encoder, if you have any need on them, pls feel free to contact us.
G7 Series	CIMR-G7U40P4 CIMR-G7U40P7 CIMR-G7U41P5 CIMR-G7U42P2 CIMR-G7U43P7 CIMR-G7U45P5 CIMR-G7U47P5 CIMR-G7U4011 CIMR-G7U4015 CIMR-G7U4018 CIMR-G7U4022 CIMR-G7U4030 CIMR-G7U4037 CIMR-G7U4045 CIMR-G7U4055 CIMR-G7U4075 CIMR-G7U4090 CIMR-G7U4110 CIMR-G7U4132 CIMR-G7U4160 CIMR-G7U4220 CIMR-G7U20P4 CIMR-G7U20P7 CIMR-G7U21P5 CIMR-G7U22P2 CIMR-G7U23P7 CIMR-G7U25P5 CIMR-G7U27P5 CIMR-G7U2011 CIMR-G7U2015 CIMR-G7U2018 CIMR-G7U2022 CIMR-G7U2030 CIMR-G7U2037 CIMR-G7U2045 CIMR-G7U2055 CIMR-G7U2075 CIMR-G7U2090 CIMR-G7U2110 CIMR-G7U40P7 CIMR-G7U41P5 CIMR-G7U42P2 CIMR-G7U43P7 CIMR-G7U44P0 CIMR-G7U45P5 CIMR-G7U47P5 CIMR-G7U4011 CIMR-G7U4015 CIMR-G7U4018 CIMR-G7U4022 CIMR-G7U4030 CIMR-G7U4037 CIMR-G7U4045 CIMR-G7U4055 CIMR-G7U4075 CIMR-G7U4090 CIMR-G7U4110 CIMR-G7U4132 CIMR-G7U4160 CIMR-G7U4185 CIMR-G7U4220 CIMR-G7U4300 We have good prices on any series of Yaskawa Inverter,Servomotor and Servo Drive and Encoder, if you have any need on them, pls feel free to contact us.
More Inverters	F7 Series CIMR-F7U40P4 CIMR-F7U40P7 CIMR-F7U41P5 CIMR-F7U42P2 CIMR-F7U43P7 CIMR-F7U45P5 CIMR-F7U47P5 CIMR-F7U4011 CIMR-F7U4015 CIMR-F7U4018 CIMR-F7U4022 CIMR-F7U4030 CIMR-F7U4037 CIMR-F7U4045 CIMR-F7U4055 CIMR-F7U4075 CIMR-F7U4090 CIMR-F7U4110 CIMR-F7U4132 CIMR-F7U4160 CIMR-F7U4220 CIMR-F7Z40P4 CIMR-F7Z40P7 CIMR-F7Z41P5 CIMR-F7Z42P2 CIMR-F7Z43P7 CIMR-F7Z45P5 CIMR-F7Z47P5 CIMR-F7Z4011 CIMR-F7Z4015 CIMR-F7Z4018 CIMR-F7Z4022 CIMR-F7Z4030 CIMR-F7Z4037 CIMR-F7Z4045 CIMR-F7Z4055 CIMR-F7Z4075 CIMR-F7Z4090 CIMR-F7Z4110 CIMR-F7Z4132 CIMR-F7Z4160 CIMR-F7Z4220 J7 Series CIMR-J7AA40P4 CIMR-J7AA40P7 CIMR-J7AA41P5 CIMR-J7AA42P2 CIMR-J7AA43P7 V7 Series CIMR-V7AT40P4 CIMR-V7AT40P7 CIMR-V7AT41P5 CIMR-V7AT42P2 CIMR-V7AT43P7 CIMR-V7AT45P5 CIMR-V7AT47P5 CIMR-V7AZ40P4 CIMR-V7AZ40P7 CIMR-V7AZ41P5 CIMR-V7AZ42P2 CIMR-V7AZ43P7 CIMR-V7AZ45P5 CIMR-V7AZ47P5 We have good prices on any series of Yaskawa Inverter,Servomotor and Servo Drive and Encoder, if you have any need on them, pls feel free to contact us.
