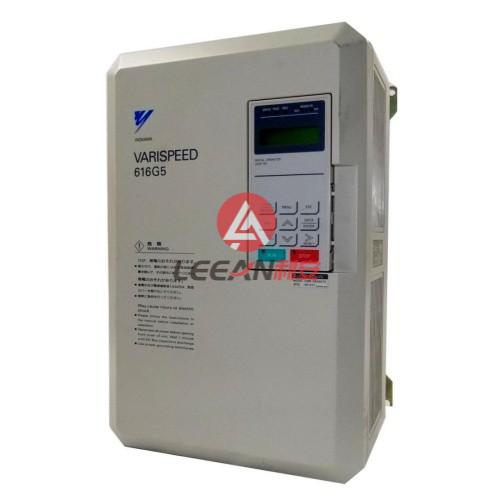

Yaskawa Electric Varispeed G5 Variable Frequency Drive CIMR-G5A40P4 Industrial Inverter 380-460V 1.8A New

Product Item : CIMR-G5A40P4
Category： OYMC Omron Yaskawa Inverter
Condition:New Original
Warranty:One Year
Country of Origin:Japan
Stock:50PCS
INQUIRY EMAIL

Yaskawa Electric Varispeed G5 Variable Frequency Drive CIMR-G5A40P4 Industrial Inverter 380-460V 1.8A New

Overview

The G5 GPD515 Drive produced an output of adjustable voltage and frequency to control the speed of a squirrel cage induction motor. This PWM design provided low motor noise and high starting torque. Current overload rating was 150% for 60 seconds. The drive provided 3 modes of control and speed accuracy to suit application requirements; V/Hz (2%), sensorless vector (0.1%), or flux vector control (0.01% with motor-mounted encoder and drive-mounted PG-X2 card required).

The G5 GPD515 Drive is a Legacy product and is no longer promoted in the Americas.

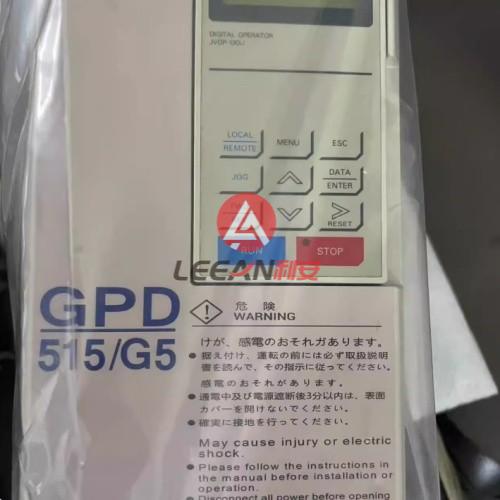

The GPD 515/G5, hereafter referred to as the drive, is a general purpose sine-coded pulse
width modulated AC motor drive which generates an adjustable voltage/frequency three
phase output for complete speed control of most conventional squirrel cage induction
motors. Automatic stall prevention and voltage boost prevents nuisance tripping during load
or line side transient conditions. The drive will not induce any voltage line notching distortion
back to the utility line and maintains a displacement power factor of not less than 0.98
throughout its speed range.
When properly installed, operated and maintained, the drive will provide a lifetime of
service. It is mandatory that the person who operates, inspects, or maintains this
equipment thoroughly read and understand this manual before proceeding.
This manual primarily describes the GPD 515/G5, but contains basic information for the
operator control station as well. This manual is equally applicable to drives labelled
GPD 515 or G5.

Details

Manufacture	Yaskawa from Japan
Product Type	AC Drive Inverter

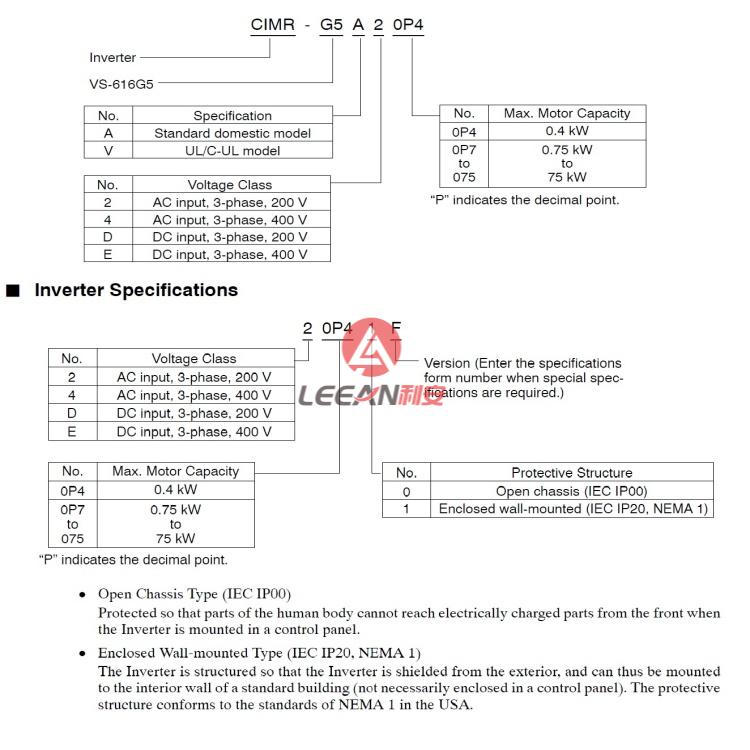

Model no.	CIMR-G5A40P4
Specifications	Input:AC 3PH 380-460V 50Hz 380-460V 60Hz Output:AC 3PH 0-460V 1.4kVA 1.8A
Condition	New
Net Weight	1.3KG
Warranty	One Year
G5 Series VFD	CIMR-G5A40P4 CIMR-G5A40P7 CIMR-G5A41P5 CIMR-G5A42P2 CIMR-G5A43P7 CIMR-G5A45P5 CIMR-G5A47P5 CIMR-G5C47P5 CIMR-G5A4011 CIMR-G5A4015 CIMR-G5A4018 CIMR-G5A4022 CIMR-G5A4030 CIMR-G5A4037 CIMR-G5A4045 CIMR-G5A4055 CIMR-G5A20P4 CIMR-G5A20P7 CIMR-G5A21P5 CIMR-G5A22P2 CIMR-G5A23P7 CIMR-G5A25P5 CIMR-G5A27P5 CIMR-G5A2011 CIMR-G5A2015 CIMR-G5A2018 CIMR-G5A2022 CIMR-G5A2030 CIMR-G5A44P0 CIMR-G5U40P7 CIMR-G5M41P5
V7 Series AC Drive Inverter	CIMR-V7AT40P4 CIMR-V7AT40P7 CIMR-V7AT41P5 CIMR-V7AT42P2 CIMR-V7AT43P7 CIMR-V7AT45P5 CIMR-V7AT47P5 CIMR-V7AZ40P4 CIMR-V7AZ40P7 CIMR-V7AZ41P5 CIMR-V7AZ42P2 CIMR-V7AZ43P7 CIMR-V7AZ45P5 CIMR-V7AZ47P5 CIMR-V7AZB0P7 CIMR-V7AZB1P5 CIMR-V7AZB2P2 CIMR-V7RA40P7 CIMR-V7AZB7P5 CIMR-F7A4022 CIMR-F7B4075 CIMR-F7B4090 CIMR-V7AA20P2 CIMR-V7CJ45P5 CIMR-V7AM42P2 CIMR-V7CA23P7 CIMR-V7ATB3P7 CIMR-V7AZ43P0 CIMR-V7AZ42P2 CIMR-V7AT23P7 CIMR-V7NA20P2 CIMR-V7CCB0P1 CIMR-V7NA20P2 CIMR-V7CJ40P7 CIMR-V7BC24P0 CIMR-V7RA40P4 CIMR-V7AM23P7 CIMR-V7AM20P4 CIMR-V7SC24P0 CIMR-V7AA27P5 CIMR-V7AAB0P1 CIMR-V7CA21P5 We have good prices on any series of Yaskawa Inverter,Servomotor and Servo Drive and Encoder, if you have any need on them, pls feel free to contact us.
J7 Series AC Drive Inverter	CIMR-J7AA40P4 CIMR-J7AA40P7 CIMR-J7AA41P5 CIMR-J7AA42P2 CIMR-J7AA43P7 CIMR-J7AA20P7 CIMR-J7AA21P5 CIMR-J7AA22P2 CIMR-J7AA20P2 CIMR-J7AA20P4 CIMR-J7AA23P7 CIMR-J7AA20P1 CIMR-J7AZ20P1 CIMR-J7AZ20P2 CIMR-J7AZ20P4 CIMR-J7AZ20P7 CIMR-J7AZ21P5 CIMR-J7AZ22P2 CIMR-J7AZ23P7 CIMR-J7AZ40P2 CIMR-J7AZ40P4 CIMR-J7AZ40P7 CIMR-J7AZ41P5 CIMR-J7AZ42P2 CIMR-J7AZ43P7 CIMR-J7AZ43P0 CIMR-J7AZB0P4 CIMR-J7AZB0P7 CIMR-J7ACB0P4 CIMR-J7ACB0P2 CIMR-J7AM20P7 CIMR-J7AM20P1 CIMR-J7AM20P2 CIMR-J7AM43P7 CIMR-J7AM43P1 CIMR-J7AM20P4 CIMR-J7AM20P7 CIMR-J7AM22P2 CIMR-J7AM23P7 CIMR-J7AM21P5 We have good prices on any series of Yaskawa Inverter,Servomotor and Servo Drive and Encoder, if you have any need on them, pls feel free to contact us.
F7 Series AC Drive Inverter	CIMR-F7U20P4 CIMR-F7U20P7 CIMR-F7U21P5 CIMR-F7U22P2 CIMR-F7U23P7 CIMR-F7U25P5 CIMR-F7U27P5 CIMR-F7U2011 CIMR-F7U2015 CIMR-F7U2018 CIMR-F7U2022 CIMR-F7U2030 CIMR-F7U2037 CIMR-F7U2045 CIMR-F7U2055 CIMR-F7U2075 CIMR-F7U2090 CIMR-F7U2110 CIMR-F7U40P4 CIMR-F7U40P7 CIMR-F7U41P5 CIMR-F7U42P2 CIMR-F7U43P7 CIMR-F7U44P0 CIMR-F7U45P5 CIMR-F7U47P5 CIMR-F7U4011 CIMR-F7U4015 CIMR-F7U4018 CIMR-F7U4022 CIMR-F7U4030 CIMR-F7U4037 CIMR-F7U4045 CIMR-F7U4055 CIMR-F7U4075 CIMR-F7U4090 CIMR-F7U4110 CIMR-F7U4132 CIMR-F7U4160 CIMR-F7U4185 CIMR-F7U4220 CIMR-F7U4300 We have good prices on any series of Yaskawa Inverter,Servomotor and Servo Drive and Encoder, if you have any need on them, pls feel free to contact us.

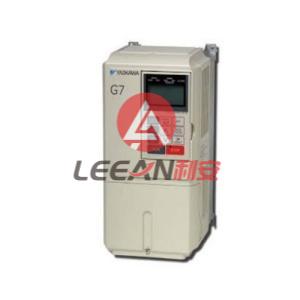

G7 Series	CIMR-G7U40P4 CIMR-G7U40P7 CIMR-G7U41P5 CIMR-G7U42P2 CIMR-G7U43P7 CIMR-G7U45P5 CIMR-G7U47P5 CIMR-G7U4011 CIMR-G7U4015 CIMR-G7U4018 CIMR-G7U4022 CIMR-G7U4030 CIMR-G7U4037 CIMR-G7U4045 CIMR-G7U4055 CIMR-G7U4075 CIMR-G7U4090 CIMR-G7U4110 CIMR-G7U4132 CIMR-G7U4160 CIMR-G7U4220 CIMR-G7U20P4 CIMR-G7U20P7 CIMR-G7U21P5 CIMR-G7U22P2 CIMR-G7U23P7 CIMR-G7U25P5 CIMR-G7U27P5 CIMR-G7U2011 CIMR-G7U2015 CIMR-G7U2018 CIMR-G7U2022 CIMR-G7U2030 CIMR-G7U2037 CIMR-G7U2045 CIMR-G7U2055 CIMR-G7U2075 CIMR-G7U2090 CIMR-G7U2110 CIMR-G7U40P7 CIMR-G7U41P5 CIMR-G7U42P2 CIMR-G7U43P7 CIMR-G7U44P0 CIMR-G7U45P5 CIMR-G7U47P5 CIMR-G7U4011 CIMR-G7U4015 CIMR-G7U4018 CIMR-G7U4022 CIMR-G7U4030 CIMR-G7U4037 CIMR-G7U4045 CIMR-G7U4055 CIMR-G7U4075 CIMR-G7U4090 CIMR-G7U4110 CIMR-G7U4132 CIMR-G7U4160 CIMR-G7U4185 CIMR-G7U4220 CIMR-G7U4300 We have good prices on any series of Yaskawa Inverter,Servomotor and Servo Drive and Encoder, if you have any need on them, pls feel free to contact us.
More Inverters	F7 Series CIMR-F7U40P4 CIMR-F7U40P7 CIMR-F7U41P5 CIMR-F7U42P2 CIMR-F7U43P7 CIMR-F7U45P5 CIMR-F7U47P5 CIMR-F7U4011 CIMR-F7U4015 CIMR-F7U4018 CIMR-F7U4022 CIMR-F7U4030 CIMR-F7U4037 CIMR-F7U4045 CIMR-F7U4055 CIMR-F7U4075 CIMR-F7U4090 CIMR-F7U4110 CIMR-F7U4132 CIMR-F7U4160 CIMR-F7U4220 CIMR-F7Z40P4 CIMR-F7Z40P7 CIMR-F7Z41P5 CIMR-F7Z42P2 CIMR-F7Z43P7 CIMR-F7Z45P5 CIMR-F7Z47P5 CIMR-F7Z4011 CIMR-F7Z4015 CIMR-F7Z4018 CIMR-F7Z4022 CIMR-F7Z4030 CIMR-F7Z4037 CIMR-F7Z4045 CIMR-F7Z4055 CIMR-F7Z4075 CIMR-F7Z4090 CIMR-F7Z4110 CIMR-F7Z4132 CIMR-F7Z4160 CIMR-F7Z4220 J7 Series CIMR-J7AA40P4 CIMR-J7AA40P7 CIMR-J7AA41P5 CIMR-J7AA42P2 CIMR-J7AA43P7 V7 Series CIMR-V7AT40P4 CIMR-V7AT40P7 CIMR-V7AT41P5 CIMR-V7AT42P2 CIMR-V7AT43P7 CIMR-V7AT45P5 CIMR-V7AT47P5 CIMR-V7AZ40P4 CIMR-V7AZ40P7 CIMR-V7AZ41P5 CIMR-V7AZ42P2 CIMR-V7AZ43P7 CIMR-V7AZ45P5 CIMR-V7AZ47P5 We have good prices on any series of Yaskawa Inverter,Servomotor and Servo Drive and Encoder, if you have any need on them, pls feel free to contact us.
