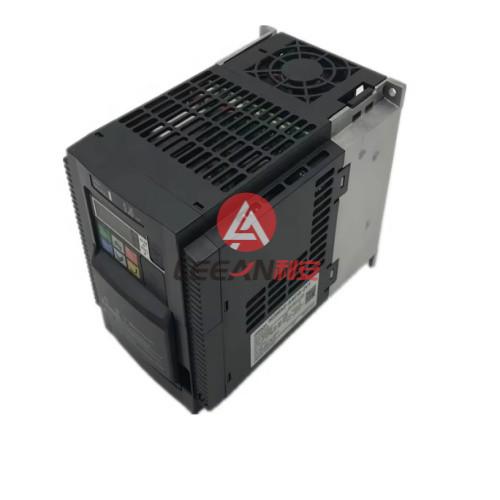

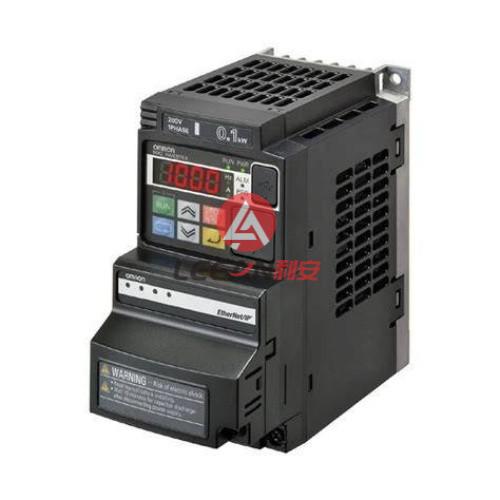

Omron MX2 Series Standard Inverter 3G3MX2-A4015-ZV1 Variable Frequency Drive New

Omron MX2 Series Standard Inverter 3G3MX2-A4015-ZV1 Variable Frequency Drive New

Overview

Congratulation on your purchase of an MX2 Series Omron inverter! This inverter drive features state-of-the-art circuitry and components to provide high performance. The housing footprint is exceptionally small, given the size of the corresponding motor. The Omron MX2 product line includes more than a dozen inverter models to cover motor sizes from 1/8 horsepower to 20 horsepower, in either 240 VAC or 480 VAC power input versions.

The main features are:
• 200 V and 400 V class, 0.1 to 15 kW inverters having dual rating
• Drive programming function integrated
• Built-in RS485 MODBUS RTU as standard, other FieldBus optional
• New current suppressing function
• Sixteen programmable speed levels
• PID control adjusts motor speed automatically to maintain a process variable value
• Password protection to avoid unexpected parameter change

Additionally the products produced in November 09 or later includes these new features:
• Permanent magnet motor control
• 5 line LCD support with Read and Write capability (Copy function) and Real Time Clock Trip History

The design in Omron inverters overcomes many of the traditional trade-offs between speed, torque and efficiency. The performance characteristics are:
• High starting torque of 200% at 0.5 Hz
• Continuous operation at 100% torque within a 1:10 speed range (6/60 Hz/5/50 Hz) without motor derating.
• Fan has ON/OFF selection to provide longer life for cooling fan.

A full line of accessories from Omron is available to complete your motor application:
• Integrated USB port for PC communication
• Digital remote operator keypad
• Integrated brake chopper
• EMC filter (footprint type C1) optional

Checking the model

System configuration

We will pack the items carefully under 30KG in carton box and 30KG+ in wooden box.

We will ship the items out by FEDEX ,DHL,UPS and so on, the delivery time is about 5-6 working days.

1.100% T/T in advance for the items with 3-5 days lead time.

2.50% T/T advance and balance before delivery for the items with 2-3 weeks lead time.

3.We can accept T/T; Wechat and Alipay payment terms.
