Honeywell UNIPOINT 3 Wire MV Bridge Controlle Original 2306B2000 DIN RAIL SOCKET, POWER CONNECTOR, WITH GAS TYPE STICKERS New

Honeywell UNIPOINT 3 Wire MV Bridge Controlle Original 2306B2000 DIN RAIL SOCKET, POWER CONNECTOR, WITH GAS TYPE STICKERS New

Product Item : 2306B2000
Category： Controller
Condition:New Original
input：18V-32V
output：2.4V-8.6V
Stock:50PCS
Attachment INQUIRY EMAIL

Honeywell UNIPOINT 3 Wire MV Bridge Controlle Original 2306B2000 DIN RAIL SOCKET, POWER CONNECTOR, WITH GAS TYPE STICKERS New

Overview
Unipoint can be easily installed into any plastic or metal enclosure for use indoor or outdoors and even in potentially explosive atmospheres. With the addition of one of Honeywell Analytics' range of flammable, toxic or Oxygen detectors, systems may be configured to monitor gases in a wide range of applications from car parks and boiler houses to analyser shelters or crane cabs in offshore facilities.

Two versions of Unipoint are available: one for mV bridge, catalytic bead type, flammable gas detector and the other for any 2 or 3 wire 4-20mA type gas detector. Each Unipoint is easily installed onto the DIN rail via a special socket (provided) that also interconnects power to adjacent units. With removable terminal connectors, individual Unipoint controllers can be easily changed without disturbing other devices.

By clipping together multiple Unipoints small to medium sized monitoring solutions can be realised. Each unit includes built-in audio/visual alarms, three programmable alarm relays and a fault relay. Gas concentration and system status is displayed on the backlit LCD and each controller is fully user programmable via an intuitive, push button operated menu system. Configuration menus can be password protected to prevent unauthorised access. In addition remote inputs allow accept, reset and inhibit of alarms without the need to open the enclosure that the Unipoint is mounted in.

Details

Additional Features and Benefits:

Typical Applications:
Small and medium integrated systems
Custom control cabinets and panels
Unmanned equipment rooms
Boiler houses
HVAC systems
Analyzer houses
Car parks
Crane cabs
Laboratories
User Friendly:

Ultra-clear backlit display
System status codes
Built-in audiovisual alarms
Intuitive menu system
Simple pushbutton operation
Remote accept, reset and inhibit inputs
Easy to Install:

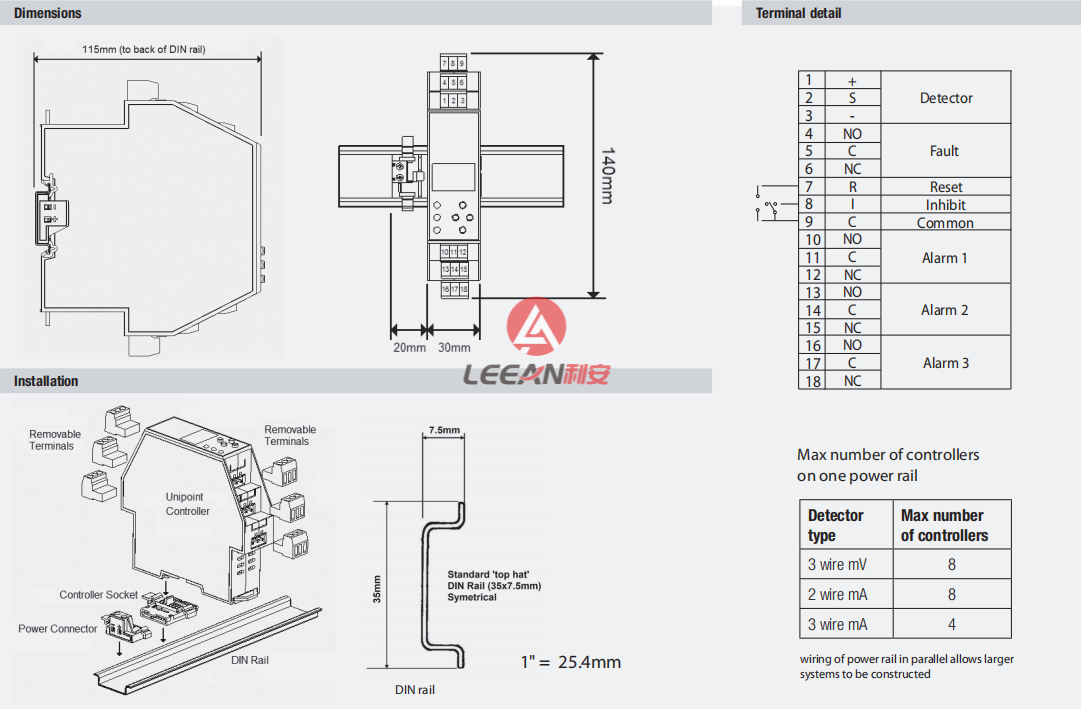

TS35 (‘top hat’) DIN rail mounting
Removable terminal connectors
Easy access to all terminals
Additional units clip together
Comprehensive Operation:

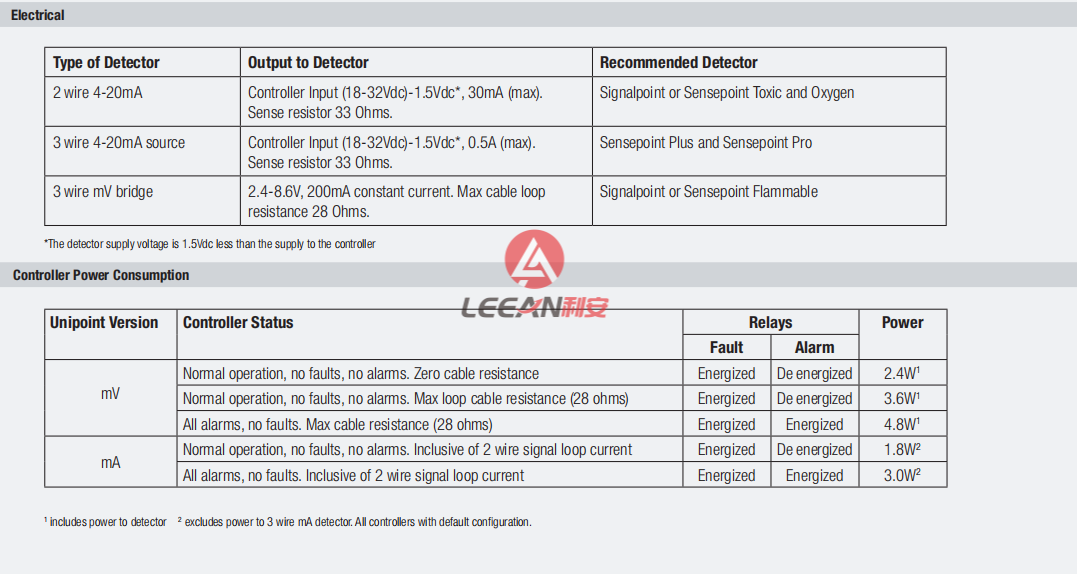

3 wire mV bridge, 2 and 3 wire 4-20mA inputs
DC operation
3 x alarm relays
1 x system fault relay
Field inhibit input (mA versions)
Flexible Operation:

Fully user programmable scale, units and calibration
Relays configurable as energized, de-energized, latching or non-latching, alarm relay on/off delay
Compatible with a wide range of gas detectors
Features & Benefits:

User friendly with ultra-clear backlit display
TS35 (‘top hat’) DIN rail mounting
Compatible with a wide range of gas detectors

Manufacture	Honeywell from the United States
Model no.	2306B2000
Condition	New
Output Rated Power	2.4V-8.6V
Input	18A-32A 1A
High Speed	200mA
Net Weight	--
Warranty	One Year
