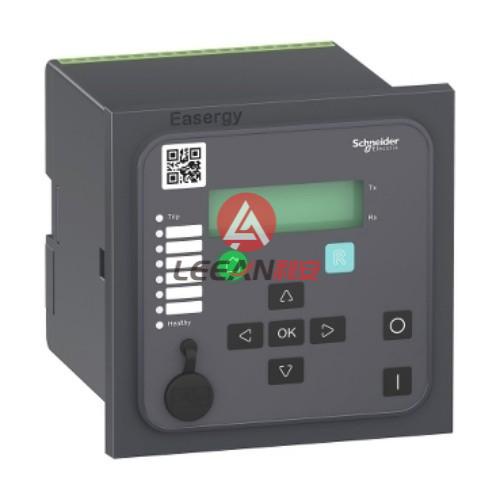

Schneider Electric High Performance EasergyMicom P1 series Relay for Reliable Electrical Control NEW

Product Item : EasergyMicom P1
Category： Schneider Relay protection device
Condition:New Original
Warranty:One Year
Country of Origin:china
Stock:50PCS
INQUIRY EMAIL

Schneider Electric High Performance EasergyMicom P1 series Relay for Reliable Electrical Control NEW

Overview

PowerLogic P1 Relays are compact and cost-effective protection solution for MV/LV applications. Easergy P1 is a overcurrent, voltage, frequency and earth-fault protection, directional as option, housed in uniquely small case with a quick fixing methode. Easergy MiCOM P115 and P116 are self or dual powered protection relays for all MV applications where auxiliary power supply is not guaranteed.

Description
The Easergy P1 relays are suitable for the applications where overcurrent and/or earthfault and voltage protection are required. Easergy P1F and P1V models can be applied to medium and low voltage electrical systems.

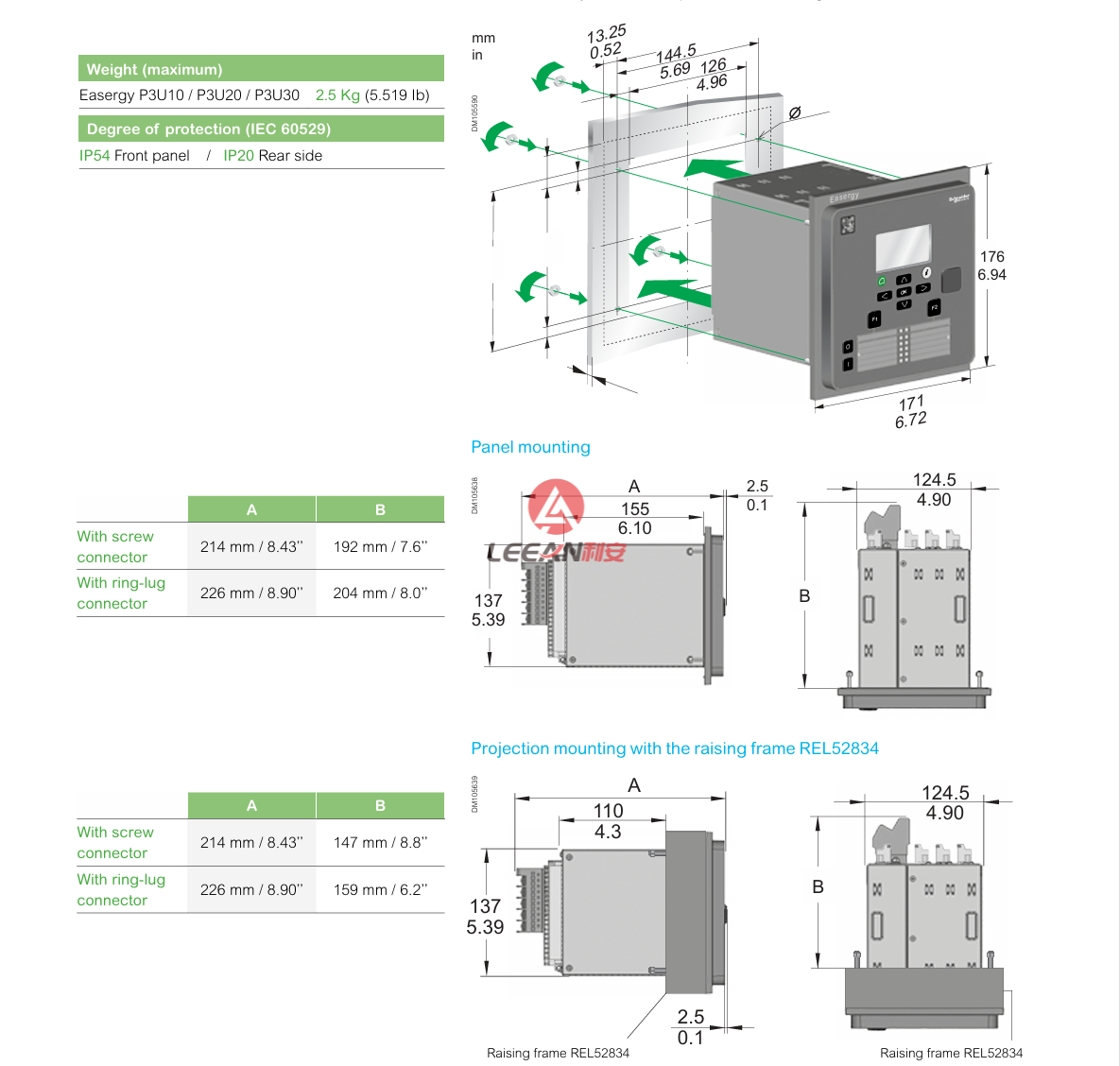

Easergy P1 relays provide features for easy adaptation to different applications and operation conditions. The P1F and P1V models can be fully configured manually, without using setting software. Alternatively, eSetup Easergy Pro (or Easergy Studio) setting software allows configuration parameters to be modified for a specific application via the USB port. IEC 60870-5-103 and Modbus RTU integrated communication protocols are available for flexible integration into most substation control or DCS systems. Close and trip commands can be executed via functional key on the front panel, default menu window, DCS/SCADA system (RS485) or configured binary input. Three level password gives proper access rights for secure maintenance of the relay. As a device housed in a small sized flush-mountable case, the P1V and P1F models can be easily installed in all modern, dimension-focused switchgear panels , up to IP54 ingress protection degree. The relay can be also considered as a cost-effective answer to retrofit demands of older substations. In P1F we have, for overcurrent protection functionatily, selectable measuring criteria: True RMS and/or fundamental frequency (Fourier) current measurements allow to increase selectivity and adapt to the application.

Details

Manufacture	Schneider Electric from France
Product Type	AC Industrial relay
Model no.	EasergyMicom P1
Condition	New
Net Weight	1KG
Warranty	One Year
Easergy Micom P1 series	P3G30 P3U30 P3F30 P3L30 P3T32 P3G30 P3G32 P3M30 P3M32 We have good prices on any series of Schneider relays, modules, touch screens, switch controllers, contactors, frequency converters, transformers, inverters, encoders, transformers, PLC controllers, etc., pls feel free to contact us.
